China XP-A10 3D Wheel Alignment Garage Equipment With Software System wholesale

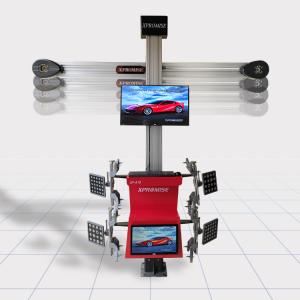

XP-A10 3D Wheel Alignment Garage Equipment With Software System

Name: XPA10 3D Wheel Alignment Garage Equipment With Software System
Brand: XPROMISE
Price: 3250.00 USD

Ask Latest Price

Video Channel

Brand Name :XPROMISE

Model Number :XP-A10

Certification :CE

Place of Origin :China

MOQ :1Unit

Price :USD3250.00/1Unit

Payment Terms :L/C, T/T, D/P, Western Union, Paypal, Money Gram, cash

Supply Ability :2000pieces/Year

Delivery Time :3 work days

Contact Now

Add to Cart

View Product Description

3D Wheel Alignment

XP-A10
Characteristics of 3D Wheel Alignment:
1. 3D camerasalignment-Based on the car and not influenced by the platform
2. Measurement system-equipped with double digital camerasand four targetdisk, supplying revolutionary measurementmode
3. Target disk-There is no electronic components and connection lines on the target disk, so the wheel alignment will not has a component failure problem.
4. Equipment Calibration - once calibrationbefore delivery, workable immediatelyafter installation, no need forperiodic calibration
5.Measurement progress-no need to compensatefor steel ring ,the precise eccentric compensation will be just once pullingorpushing the car back and forth
6.Software system-Easy to operate, complete conventionalbasic parametersincluding two minutes ,significantly faster than conventional aligners
7. Daily Maintenance-Easily maintenanceanddownload freelyupgradefor the model data
Standard Configuration:
1. Compact cabinet
2. Aluminium column (Steel column as optional)
3. Dell Brandcomputer and Monitor-2Monitors
4. Target plate
5. Pylon bracket
6. Brake fixer
7. Steering wheel fixer
8. Wheel chock
9. Turntable
10. Transition block of turntable
11. 10´´--25´´ Clamp
12. 640MP Camera Beam
Software function:
Basic function: camber, caster, Kingpin Inclination, toe angle, set back, Thrust Angle and so on
Extended function: axis deviation, wheel deviation, monowheel, auto lift measurement function, steering wheel square, locating platform levelness detection.
Measurement Accuracy:

Measurement project	Accuracy	Measurement range
Display accuracy	1´/1mm
Camber	±2´	±10°
Caster	±6´	±20°
Kingpin Inclination	±6´	±20°
Toe-in & Toe-out	±2´	±20°
Set back	±2´	±5°
Thrust angle	±2´	±5°
Wheel Deviation	±2mm	4000mm
Axis Deviation	±2mm	4000mm

XP-A10 3D Wheel Alignment Garage Equipment With Software System

Trade Info:

Trade Terms	FOB / CFR
MOQ	3UNITS (USD200.00 extrally charged for LCL shipment to cover the inland freight + custom declaration fee)
Port	QINGDAO
Shipment	BY SEA /AIR
Payment Terms	T/T
Payment condition	30% prepayment,balanced againt BL copy&L/C at sight.
Supply Capability	1000units/month
Sample Availability	Yes ,But all freight(Inland freight +seafreight) covered by buyer
Sample Time	5-10days(depends on whether have in stock)
Lead Time	25-30days(Rush season 5-10days longer)
Packing	Metal frame&Carton
Delivery time	30-45days shipping time (depends on destination position)
Service	1% free parts;1year warranty after port of destination

Our advantage:
1. Why should I choose our 3D wheel Alignment?
There are several reasons you should strongly consider purchasing our 3D wheel Alignment:
*Top raw materials from only the finest plants
*Only professional cost-effective equipment
*Low prices with high quality revenue producing products
*Increase productivity for your customers( Your customers gain more, they will enjoy buying from you.)
*The best customer service. Quick reply within 24 hours and more.
*Great Warranty
2. How safe are our 3D wheel Alignment?
Our 3D wheel Alignment have been tested and CE certified for safety . They also meet the American and Australian Standard.
3. Should I keep repair and replacement parts in stock?
Yes, most all commonly required repair and replacement parts should always keep in stock.
4. Are our 3D wheel Alignment designed for commercial use?
All of our 3D wheel Alignment can be used in commercial applications without any problems.
5. Do you offer any custom designs?
Yes,we provide OEM/ODM services to top range partners.Produce a superior product for you by your designs.
